3D Printer K1 & K1 Max Series

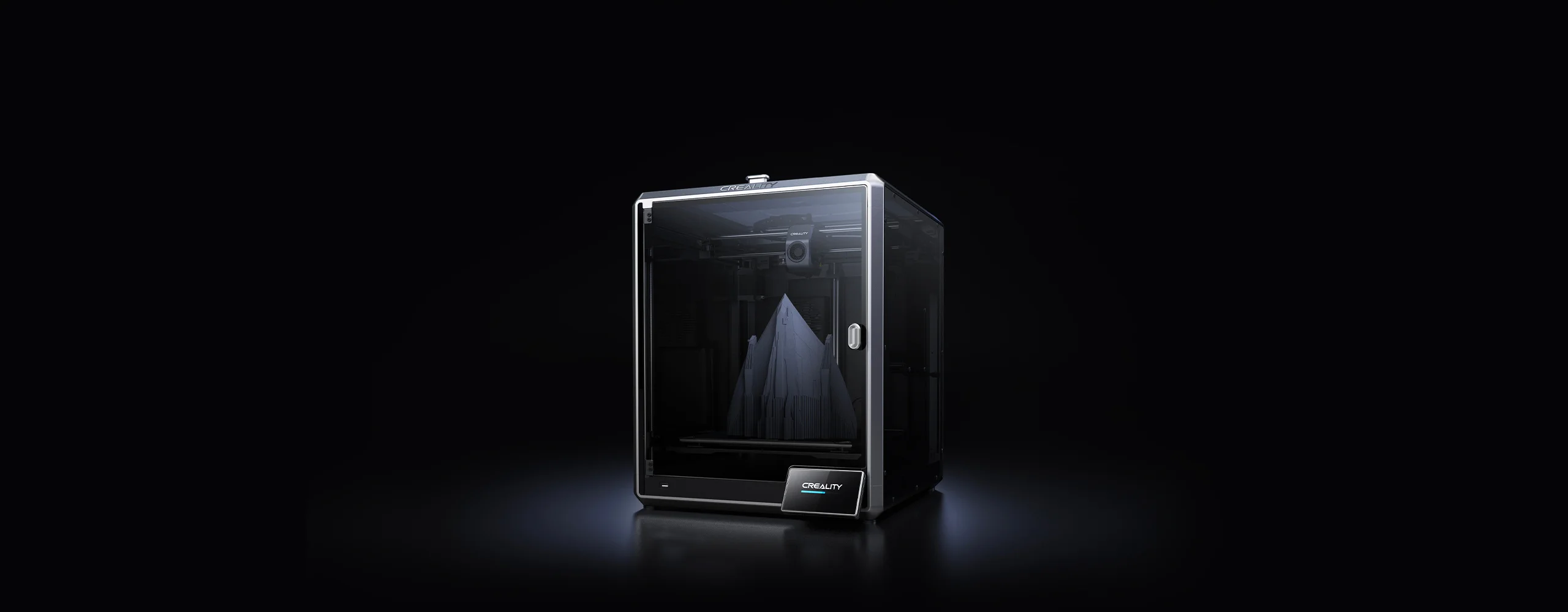

WISEMAKER K1 MAX
Super Power of Speed
Nimble Setup for Speed
K1 combines the nimble Core XY with a 190g lightweight printhead for less motion inertia. Agile and swift.

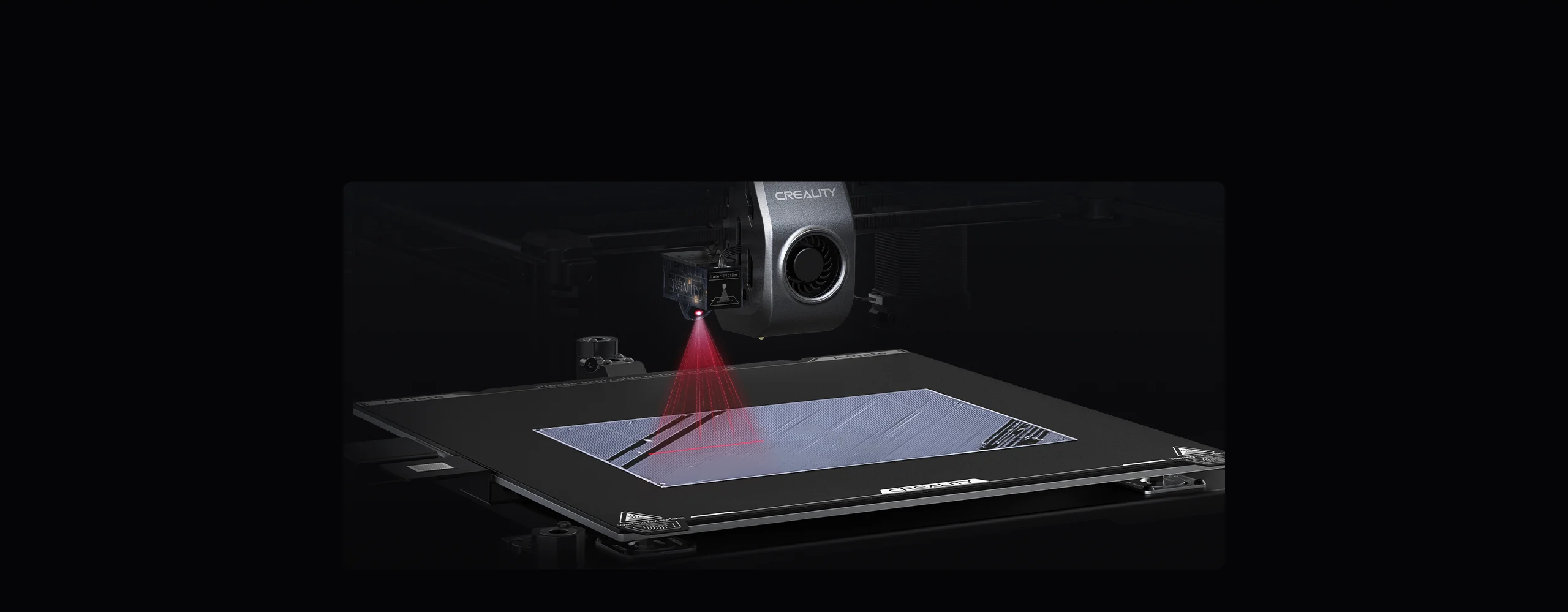

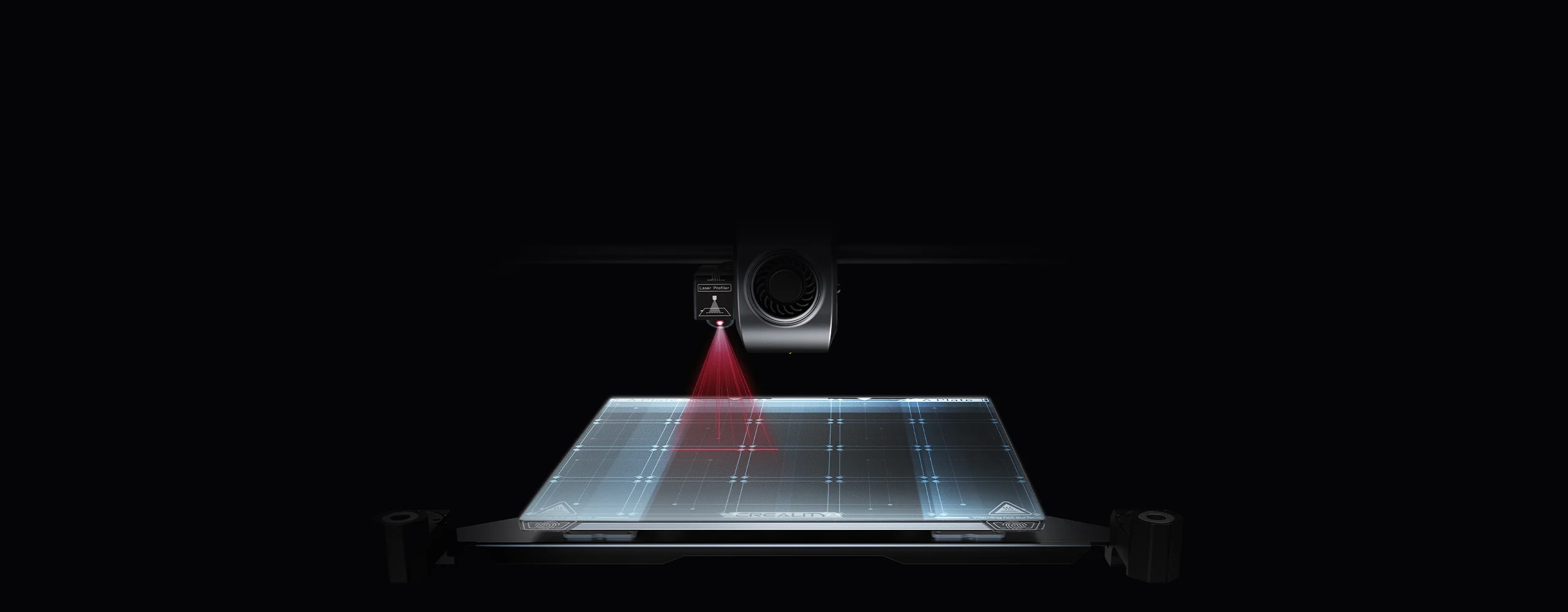

AI LiDAR Takes Care of the First Layer
Still worry about the first layer? Just leave it all to the AI LiDAR of K1 Max.
The 1 μm resolution LiDAR will scan the first layer on its own. It will pause printing
and tell you immediately if something goes wrong.

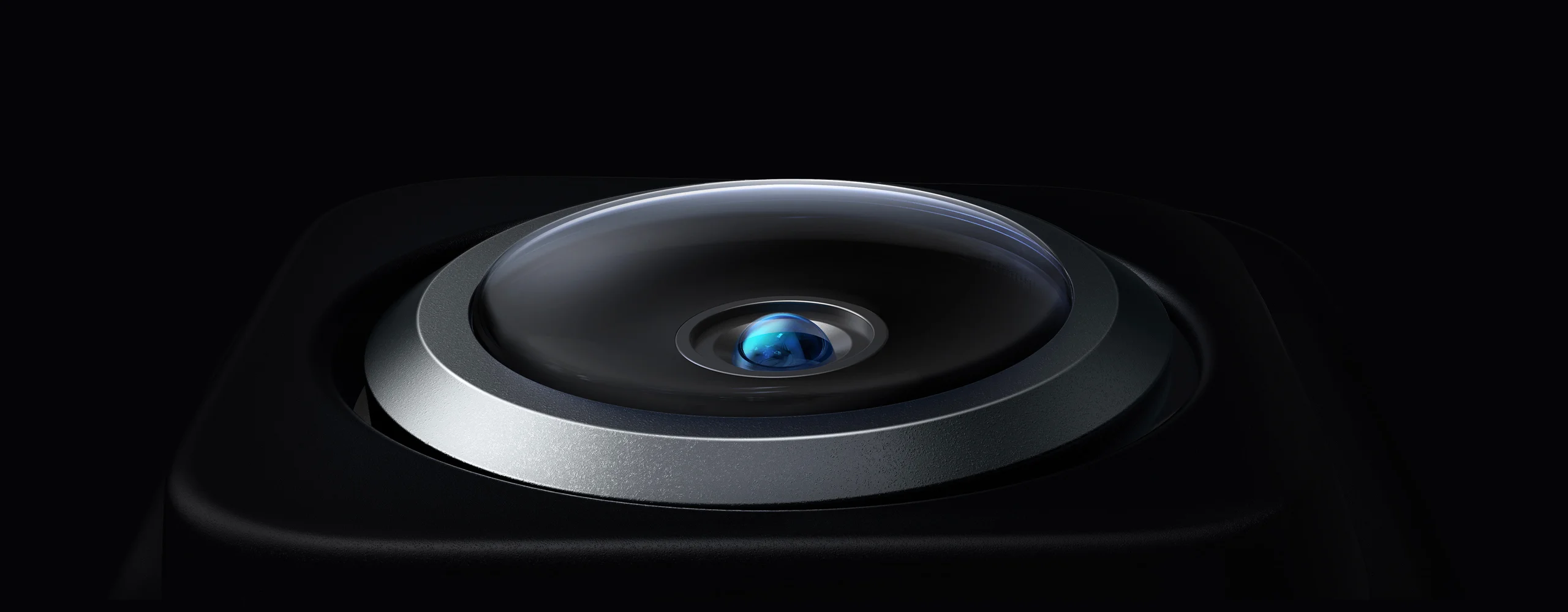

AI Camera Keeps a Keen Watch
K1 Max uses an AI camera to watch over spaghetti failure, foreign objects, debris, etc.
It will alert you when an error occurs.
It also supports real-time monitoring and creates time-lapses for sharing.

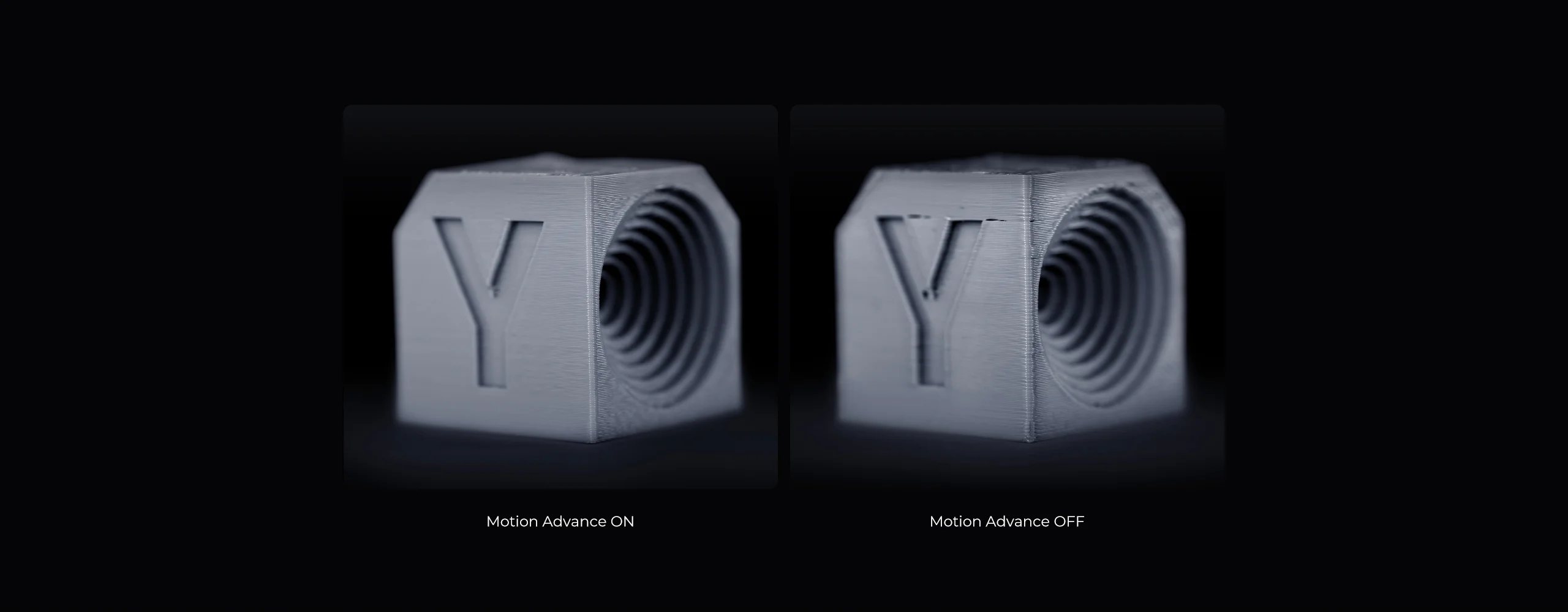

Better Feeding with Motion Advance
The motion advance function delivers the optimal feeding flow. It reduces blobs and oozes effectively.
Rigid Frame, Stable Quality
The frame of K1 Max is built with rigid die-cast aluminum alloy parts.
It enables steady printing at high speed. And the print quality is excellent the whole time.
Dual Hands-free Auto Leveling
Strain sensors in the heatbed generate an accurate leveling mesh for auto compensation.
Features

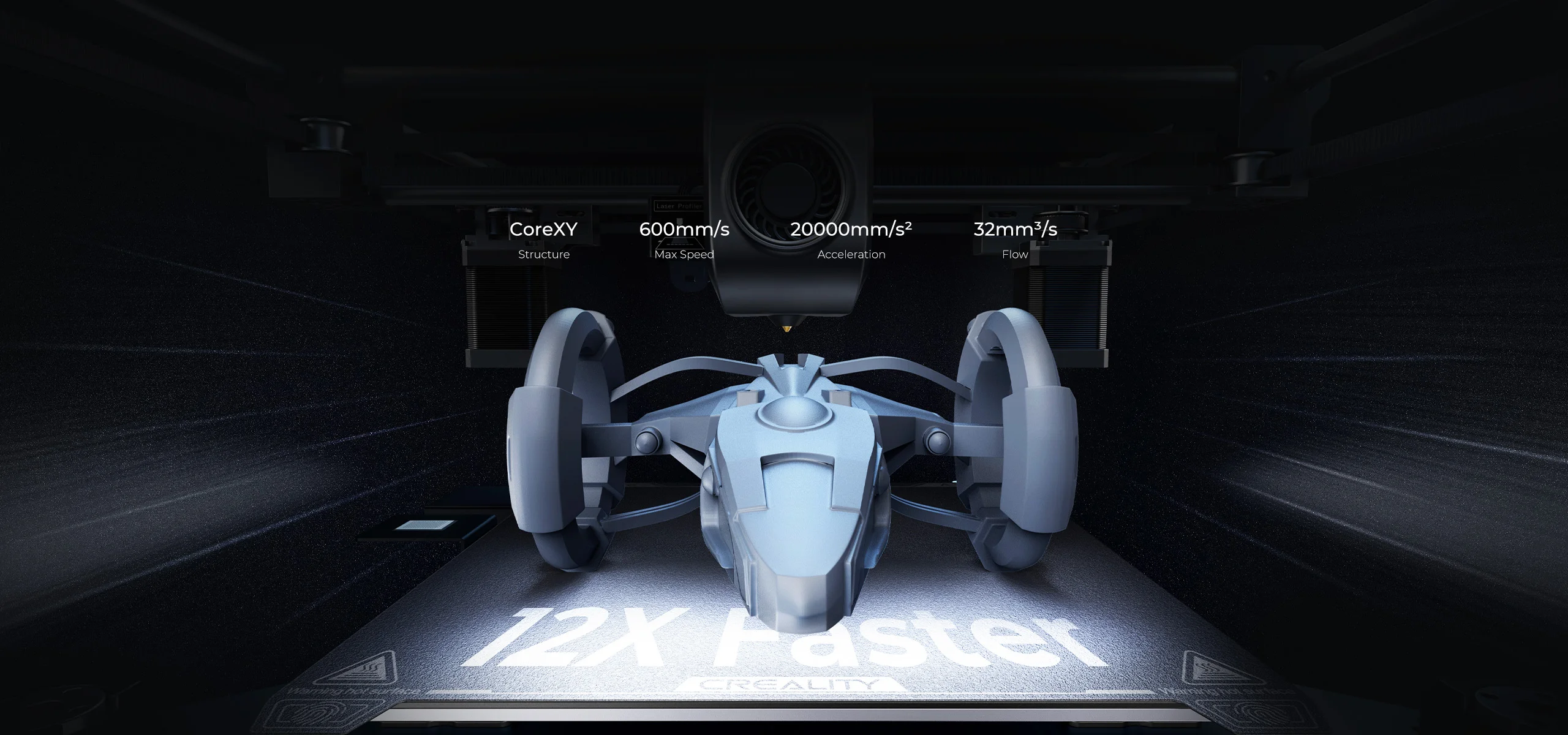

12X Faster, Defy Limitations
K1 Max reaches 600mm/s* in only 0.03s based on 20000mm/s² acceleration. It can be as productive as several 3D printers together.
Nimble Setup for Speed
K1 Max combines the nimble Core XY with a 190g lightweight printhead for less motion inertia. Agile and swift.
Max. 32mm³/s Flow
New ceramic heater, encircling the entire hotend. It heats to 200℃ in 40s and melts the filament instantly.
Rigid Frame, Stable Quality
The frame of K1 Max is built with rigid die-cast aluminum alloy parts. It enables steady printing at high speed. And the print quality is excellent the whole time.
Specification
Printing Technology:
Build Volume:
Product Dimensions:
Net Weight:
Printing Speed:
Printing Accuracy:
Layer Height:
Extruder:
Filament Diameter:
Nozzle Diameter:
Supported Filaments:
Nozzle Temberature:
Printable File Format:
Heatbed Temperature:
File Formats for Slicing:
Leveling Mode:
UI Languages:
FDM
300*300*300mm
435*462*526mm
18kg
<600mm/s
100‡0.1mm
0.1-0.35mm
Dual-gear direct drive extruder
175mm
0.4mm (swappable with 0.6/0.8mm nozzle)
ABS, PLA, PETC, PET, TPU, PA, ABS, ASA, PC, PLA-CF, PA-CF, PET-CF
<300°C
G-Code
<100°C
STL, OBJ, AMF
Dual hands-free auto leveling
Chinese, English, Spanish, German, French, Russian, Portuguese, Italian, Turkish, Japanese
